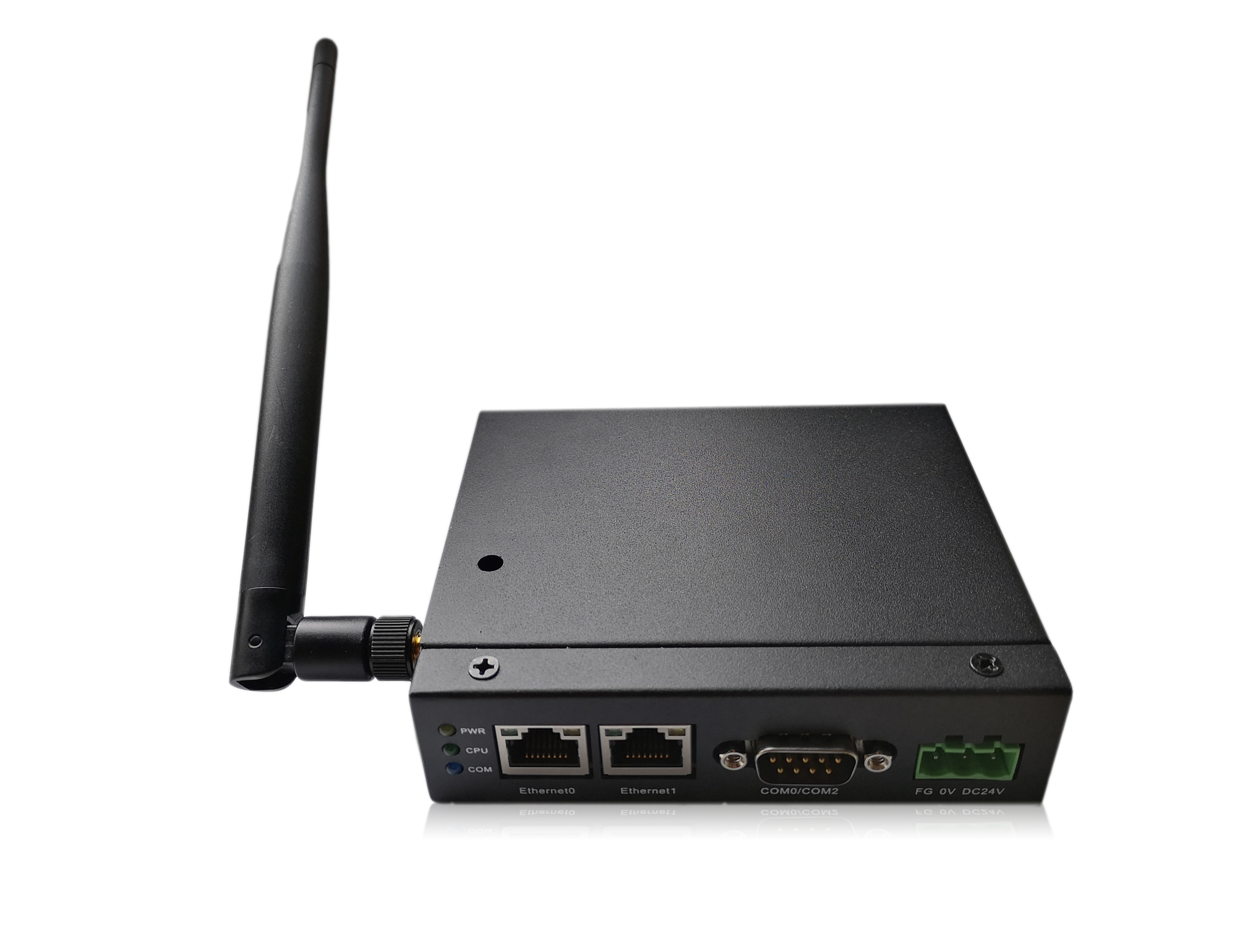

GW01-WiFi
Freescale industrial-grade CPU, clocked at 800MHz, memory up to 128M
Dual network ports + COM port communication, can connect hundreds of mainstream controllers without changing the existing architecture
DTools software is simple to configure, powerful functions to easily realize data mapping, and transfer device data to the cloud
Choice of WiFi wireless communication or 4G module communication to adapt to different usage scenarios
Small size, easy to install (DIN rail installation)
SPECIFICATION
Performance Specification
Structure specification
processor
Memory
RTC
Ethernet
WiFi
4G
USB
Program download
Wi-Fi/ wireless network
frequency band
VPN
Communication port
Program download
Memory
RTC
Ethernet
WiFi
4G
USB
Program download
Wi-Fi/ wireless network
frequency band
VPN
Communication port
Program download
ARM RISC 32Bit 800MHz
128MB NAND flash + 128MB DDR3 memory
1*USB Slave
USB Slave (Micro USB)/Network port/WiFi
LTE-FDD Band 1/3/5/8, LTE-TDD Band 38/39/40/41UMTS Band 1/8,
GSM Band 3/8
Support box remote upload, download and online monitoring, support PLC transparent transmission program upload, download and online debugging
COM0: PLC RS232/RS422/RS485; COM2: PC/PLC RS232
USB Slave/U Disk/Network Port
128MB NAND flash + 128MB DDR3 memory
Built-in real time clock
2*10/100M adaptive network port
IEEE802.11 b/g/n 802.11b:max 17dBm 802.11g:max 17dBm 802.11n:max 17dBm
no2*10/100M adaptive network port
IEEE802.11 b/g/n 802.11b:max 17dBm 802.11g:max 17dBm 802.11n:max 17dBm
1*USB Slave
USB Slave (Micro USB)/Network port/WiFi
LTE-FDD Band 1/3/5/8, LTE-TDD Band 38/39/40/41UMTS Band 1/8,
GSM Band 3/8
Support box remote upload, download and online monitoring, support PLC transparent transmission program upload, download and online debugging
COM0: PLC RS232/RS422/RS485; COM2: PC/PLC RS232
USB Slave/U Disk/Network Port
Shell color
Shell material
Dimensions
Installation method
Weight
Shell material
Dimensions
Installation method
Weight
black
metal
111.6mm*93.6mm*30mm
DIN rail installation (35mm)
0.31Kg
metal
111.6mm*93.6mm*30mm
DIN rail installation (35mm)
0.31Kg
Electrical Specification
Environmental Specification
Input range
Power
Allowable loss of power
Insulation resistance
Hi-pot test
Power
Allowable loss of power
Insulation resistance
Hi-pot test
DC12V～DC28V, built-in isolated power supply
1.5W
<3ms
More than 50MΩ@500V DC
500V AC for 1 minute
1.5W
<3ms
More than 50MΩ@500V DC
500V AC for 1 minute
Working temperature
Working humidity
Storage temperature
Storage humidity
Sine vibration test
Cooling mode
Working humidity
Storage temperature
Storage humidity
Sine vibration test
Cooling mode
-10～55℃
10~90%RH (non-condensing)
-20~60℃
10~90%RH (non-condensing)
10～25Hz (X, Y, Z direction 2G/30 minutes)
Natural air cooling
10~90%RH (non-condensing)
-20~60℃
10~90%RH (non-condensing)
10～25Hz (X, Y, Z direction 2G/30 minutes)
Natural air cooling
certified product
Software
Meet IP20
Comply with CE certification
Comply with CE certification
Conforming to IP65 certification (4208-93)
CE: EN61000-6-4:2007+A1:2011，EN61000-6-2:2005
CE: EN61000-6-4:2007+A1:2011，EN61000-6-2:2005
Configuration software
Kinco DTools V3.4 and above
